Aluminium Ground Terminals – One Conductor

Code: N/A
Download Datasheet

Description

Why Axis Aluminium Mechanical Terminals?

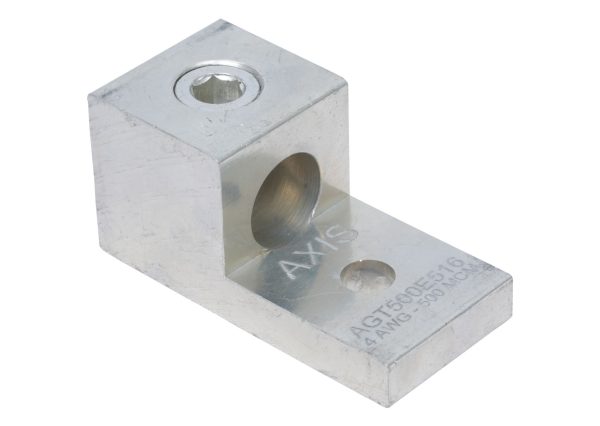

Axis Aluminium Mechanical Terminals, also known as Step Lugs and NEMA Panel Lugs, provide a certified solution for electrical grounding systems. Engineered by Axis Electricals, these terminals are cULus certified, meeting rigorous safety and performance standards from UL (Underwriters Laboratories) and CSA (Canadian Standards Association). This certification reflects our dedication to delivering reliable, high-quality mechanical terminals for critical applications, ensuring safety and performance compliance in the field.

NEMA Panel Lugs are essential in electrical systems, securely connecting conductors to the grounding network and supporting high performance in demanding environments. Axis Aluminium Step Lugs offer durability and high performance, meeting stringent safety requirements, making them a trusted choice for professionals in various industrial and commercial sectors.

What Are Aluminium Mechanical Terminals Made Of?

Our NEMA Panel Lugs are crafted from high-strength aluminium alloy, valued for its conductivity and durability. Aluminium is both lightweight and strong, offering robust wear and corrosion resistance. These characteristics make it an ideal material for demanding electrical applications where longevity and reliability are paramount.

The bolts in these Step Lugs are available in several premium materials, including:

  • Stainless Steel (S.S.) – All grades
  • Mild Steel (M.S.) – All grades
  • Aluminium

Bolts also come in various shapes and finishes—such as cone, round, and flat ends—with slotted and hex punch configurations to accommodate diverse installation needs.

Why Choose Axis Mechanical Terminals?

Axis Electricals provides Aluminium Step Lugs with unmatched quality, supported by an in-house NABL accredited testing lab. Here’s why our terminals are distinct:

  • Quality: High-strength aluminium alloys and premium bolt materials are used to ensure superior performance and durability.
  • Product Range: We offer various configurations of Aluminium Step Lugs to meet different grounding needs.
  • Precision Craftsmanship: Each terminal is manufactured with smooth edges and chamfered conductor entry, ensuring easy installation.
  • Proven Performance: Trusted by professionals in the industry, Axis Aluminium Mechanical Terminals offer dependability in critical applications, relied on by electricians and engineers alike.

Key Features of Aluminium Mechanical Terminals

Axis Aluminium Step Lugs are designed with several standout features:

  • One-Conductor Dual Rated L-Section Lugs: Accommodates various conductor types.
  • Easy Installation: Quick setup minimizes downtime and simplifies installation.
  • Low Contact Resistance: Enables efficient electrical flow and reduces energy loss.
  • Chamfered Conductor Entry: Smooth cable insertion prevents damage to conductors.
  • Filleted Edges: Enhances safety by eliminating sharp edges, reducing injury risk during handling.

These features make Aluminium Step Lugs ideal for high-stress, high-performance applications.

Applications of Aluminium NEMA Panel Lugs

Our NEMA Panel Lugs are versatile and used across multiple electrical setups, including:

  • Panel Boards: Secure grounding and conductivity for control panels and distribution boards.
  • Transformers: Reliable grounding for transformers, supporting efficient power distribution.
  • Switchgears: Enhances grounding and safety in switchgear assemblies, ensuring stable electrical connections.

For industrial machinery or commercial electrical setups, trust Axis Electricals’ Aluminium Mechanical Terminals to provide safe, reliable performance across diverse applications.

Product Code Wire Range Stude Hole Size Dimensions

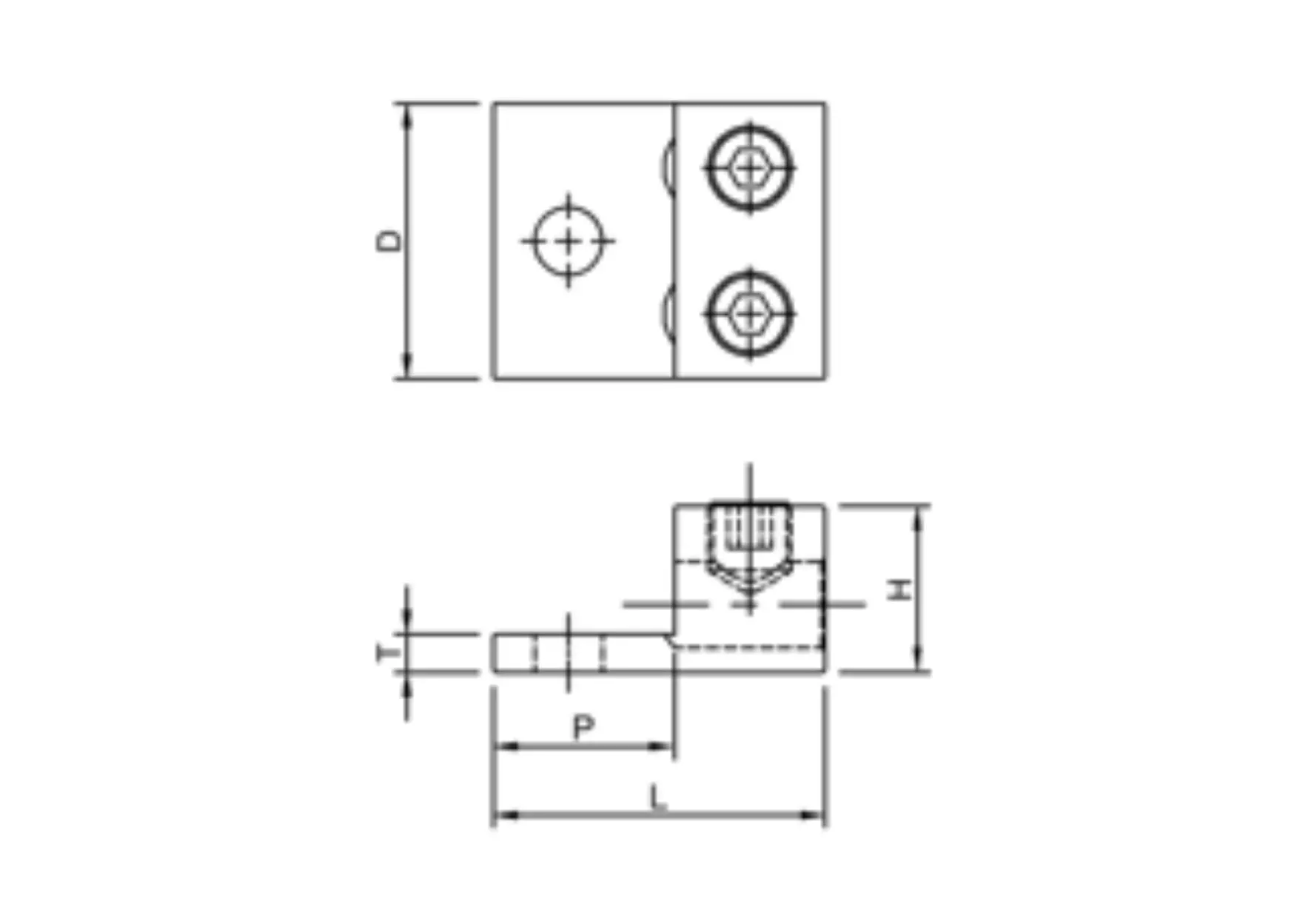

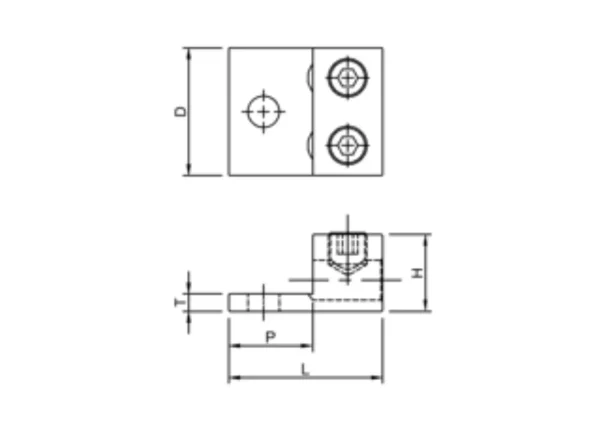

Min Max Tang Length [P] (inch) Tang Thickness [T] (inch) Length [L] (inch) Height [H] (inch) Width [D] (inch)
AGT006E14 14 AWG 6 AWG 1/4 0.63 0.10 1.16 0.56 0.50
AGT004E14 14 AWG 4 AWG 1/4 0.63 0.10 1.16 0.56 0.50
AGT002E14 14 AWG 2 AWG 1/4 0.63 0.10 1.16 0.56 0.50
AGT010E14 14 AWG 1/0 AWG 1/4 0.81 0.19 1.50 0.80 0.63
AGT020E14 14 AWG 2/0 AWG 1/4 0.81 0.19 1.50 0.80 0.63
AGT030E14 6 AWG 3/0 AWG 1/4 0.81 0.19 1.50 0.80 0.63
AGT040E516 6 AWG 4/0 AWG 5/16 0.94 0.25 2.00 1.20 1.00
AGT250E516 6 AWG 250 MCM 5/16 0.94 0.25 2.00 1.20 1.00
AGT300E516 6 AWG 300 MCM 5/16 0.94 0.25 2.00 1.20 1.00
AGT350E516 6 AWG 350 MCM 5/16 0.94 0.25 2.00 1.20 1.00
AGT500E38 4 AWG 500 MCM 3/8 1.72 0.44 3.20 1.58 1.50
AGT600E38 2 AWG 600 MCM 3/8 1.72 0.44 3.20 1.58 1.50
AGT800E12 300 MCM 800 MCM 1/2 1.69 0.50 3.50 1.95 1.75
AGT1000E12 500 MCM 1000 MCM 1/2 1.69 0.50 3.50 1.95 1.75
