Description
- Material : E-Copper
- Finish : Electro-Tinned
- Application : Up To 35 kVA
- Voltage Rating : 600 Volts / 90°C
- Features : Long Barrel for Better Mechanical & Electrical Properties

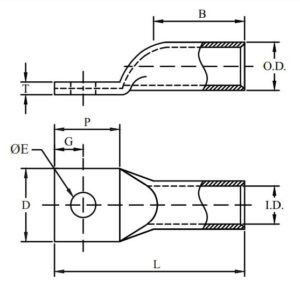

1 Hole, Long Barrel, With/Without Inspection Window (AWG)
| Code | Conductor AWG | Conductor MM2 | Bolt Size | Stud Hole ∅E | Dimensions | Color Code | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| D | T | G | P | B | L | ||||||
| ATL8C10 | 8 AWG | 10 | #10 | 0.21 | 0.42 | 0.08 | 0.28 | 0.59 | 0.81 | 1.52 | Red |
| ATL8C14 | 1/4 | 0.25 | |||||||||
| ATL8C38 | 3/8 | 0.41 | 0.57 | 0.05 | 0.31 | 0.67 | 1.59 | ||||
| ATL6C10 | 6 AWG | – | #10 | 0.21 | 0.42 | 0.08 | 0.30 | 0.67 | 0.98 | 1.77 | Blue |
| ATL6C14 | 1/4 | 0.25 | |||||||||
| ATL6C516 | 5/16 | 0.33 | 0.51 | 0.07 | 0.37 | 0.81 | 1.91 | ||||
| ATL6C38 | 3/8 | 0.41 | 0.59 | 0.05 | |||||||
| ATL4C10 | 4 AWG | – | #10 | 0.21 | 0.49 | 0.09 | 0.31 | 0.67 | 0.98 | 1.77 | Gray |
| ATL4C14 | 1/4 | 0.25 | |||||||||
| ATL4C516 | 5/16 | 0.33 | |||||||||
| ATL4C38 | 3/8 | 0.41 | 0.59 | 0.07 | 0.37 | 0.81 | 1.91 | ||||
| ATL3C10 | 3 AWG | 25 | #10 | 0.21 | 0.50 | 0.09 | 0.31 | 0.81 | 1.10 | 2.07 | White |
| ATL3C14 | 1/4 | 0.25 | |||||||||
| ATL3C516 | 5/16 | 0.33 | |||||||||
| ATL3C38 | 3/8 | 0.41 | 0.59 | 0.08 | 0.37 | ||||||
| ATL3C12 | 1/2 | 0.51 | 0.74 | 0.06 | 0.47 | 1.10 | 2.36 | ||||
| ATL2C10 | 2 AWG | 35 | #10 | 0.21 | 0.60 | 0.10 | 0.37 | 0.81 | 1.10 | 2.07 | Brown |
| ATL2C14 | 1/4 | 0.25 | |||||||||
| ATL2C516 | 5/16 | 0.33 | |||||||||
| ATL2C38 | 3/8 | 0.41 | |||||||||
| ATL2C12 | 1/2 | 0.51 | 0.74 | 0.06 | 0.47 | 1.10 | 2.36 | ||||
| ATL1C10 | 1 AWG | 50 | #10 | 0.21 | 0.67 | 0.11 | 0.37 | 0.81 | 1.10 | 2.11 | Green |
| ATL1C14 | 1/4 | 0.25 | |||||||||
| ATL1C516 | 5/16 | 0.33 | |||||||||
| ATL1C38 | 3/8 | 0.41 | 0.91 | 2.21 | |||||||
| ATL1C12 | 1/2 | 0.51 | 0.74 | 0.06 | 0.47 | 1.10 | 2.40 | ||||
| ATL10C10 | 1/0 AWG | – | #10 | 0.21 | 0.74 | 0.13 | 0.37 | 0.81 | 1.20 | 2.21 | Pink |
| ATL10C14 | 1/4 | 0.25 | |||||||||
| ATL10C516 | 5/16 | 0.33 | |||||||||
| ATL10C38 | 3/8 | 0.41 | |||||||||
| ATL10C12 | 1/2 | 0.51 | 0.47 | 1.10 | 2.50 | ||||||
| ATL20C14 | 2/0 AWG | 70 | 1/4 | 0.25 | 0.81 | 0.12 | 0.47 | 1.06 | 1.38 | 2.68 | Black |
| ATL20C516 | 5/16 | 0.33 | |||||||||
| ATL20C38 | 3/8 | 0.41 | |||||||||
| ATL20C12 | 1/2 | 0.51 | |||||||||
| ATL30C14 | 3/0 AWG | – | 1/4 | 0.25 | 0.90 | 0.13 | 0.47 | 1.06 | 1.42 | 2.80 | Orange |
| ATL30C516 | 5/16 | 0.33 | |||||||||
| ATL30C38 | 3/8 | 0.41 | |||||||||
| ATL30C12 | 1/2 | 0.51 | |||||||||
| ATL40C14 | 4/0 AWG | – | 1/4 | 0.25 | 1.00 | 0.13 | 0.52 | 1.06 | 1.42 | 2.80 | Purple |
| ATL40C516 | 5/16 | 0.33 | |||||||||
| ATL40C38 | 3/8 | 0.41 | |||||||||
| ATL40C12 | 1/2 | 0.51 | |||||||||
| ATL250C516 | 250 kcmil | – | 5/16 | 0.33 | 1.09 | 0.15 | 0.52 | 1.06 | 1.59 | 3.03 | Yellow |
| ATL250C38 | 3/8 | 0.41 | |||||||||
| ATL250C12 | 1/2 | 0.51 | |||||||||
| ATL250C12 | 300 kcmil | 150 | 1/2 | 0.51 | 1.19 | 0.15 | 0.52 | 1.06 | 1.95 | 3.39 | White |
| ATL350C38 | 350 kcmil | 185 | 3/8 | 0.41 | 1.28 | 0.17 | 0.51 | 1.06 | 1.97 | 3.46 | Red |
| ATL350C12 | 1/2 | 0.51 | |||||||||
| ATL350C58 | 5/8 | 0.67 | |||||||||
| ATL400C38 | 400 kcmil | – | 3/8 | 0.41 | 1.39 | 0.18 | 0.51 | 1.40 | 1.99 | 3.86 | Blue |
| ATL400C12 | 1/2 | 0.51 | |||||||||
| ATL400C58 | 5/8 | 0.67 | |||||||||
| ATL500C38 | 500 kcmil | 240 | 3/8 | 0.41 | 1.54 | 0.22 | 0.51 | 1.40 | 2.26 | 4.13 | Brown |
| ATL500C12 | 1/2 | 0.51 | |||||||||
| ATL500C58 | 5/8 | 0.67 | |||||||||
| ATL600C12 | 600 kcmil | 300 | 1/2 | 0.51 | 1.72 | 0.25 | 0.69 | 1.50 | 2.26 | 4.25 | Green |
| ATL600C58 | 5/8 | 0.67 | |||||||||
| ATL700C12 | 700 kcmil | – | 1/2 | 0.51 | 1.77 | 0.27 | 0.69 | 1.85 | 2.64 | 5.16 | Pink |
| ATL700C58 | 5/8 | 0.67 | |||||||||
| ATL750C12 | 750 kcmil | – | 1/2 | 0.51 | 1.90 | 0.27 | 0.69 | 1.85 | 2.64 | 5.16 | Black |
| ATL750C58 | 5/8 | 0.67 | |||||||||
| ATL800C12 | 800 kcmil | 400 | 1/2 | 0.51 | 1.93 | 0.27 | 0.69 | 1.85 | 2.64 | 5.16 | Orange |
| ATL800C58 | 5/8 | 0.67 | |||||||||
| ATL1000C12 | 1000 kcmil | 500 | 1/2 | 0.51 | 2.18 | 0.33 | 0.69 | 1.85 | 3.15 | 5.67 | White |
| ATL1000C58 | 5/8 | 0.67 | |||||||||
