Install IPC on MV Covered Conductors in 5 Mins!

In this blog, you will learn how to install Insulation Piercing Connectors on MV Covered Conductors.

Note: Please use proper tools, procedures and personal protective equipment to avoid injury.

Also, ensure you follow these safety precautions:

Disconnect the power supply before installation.
Use only insulated tools and equipment.
Confirm proper grounding of the pole and cross-arm assembly.

Identify the Correct Type of IPC

In this blog, we will be installing 2 types of IPCs

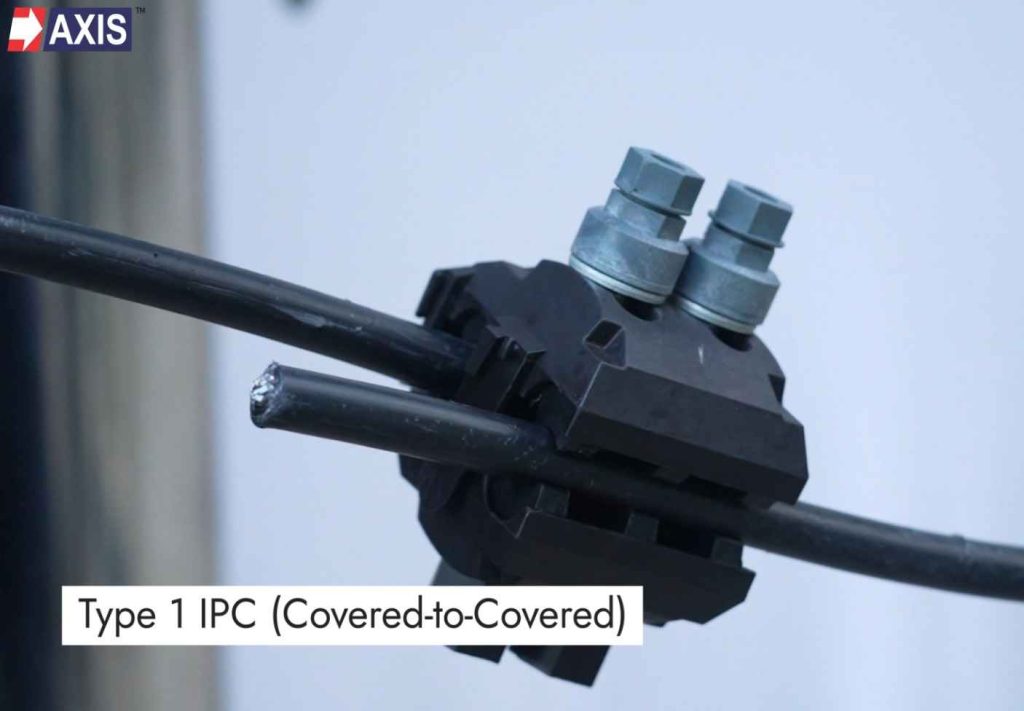

Type 1 IPC – Used for Covered-to-Covered Connections

Type 1 IPC creates branch or tap connections between two insulated covered conductors without removing their insulation. It is used to continue the line near the pole for tapping or creating network connections for extending the covered conductor system.

Type 2 IPC – Used for Earthing Connections

Earthing IPC grounds covered conductors to the earth during line maintenance, or to clear fault conditions.

Equipment and Tools Needed for Installation

Selected IPC (As Per Application)
Ratchet Spanners or Torque Wrench
Insulated Gloves

Please conduct a Site Inspection before installation

De-Energize the Line:

Confirm that the MVCC line is de-energized, check using a voltage detector.
Follow lockout/tagout (LOTO) procedures to prevent accidental re-energization.

Inspect the Worksite:

Ensure the work area is free of obstacles and meets safety regulations.
Ensure the IPC matches the conductor sizes (main and tap) as specified by the manufacturer.

Talk to our engineers!

Installation of IPC for Covered-to-Covered Conductor

Step 1: Preparing the Main Cable

Identify the main covered conductor for the IPC installation.
Align the conductor with the main slot of the IPC, ensuring it fits in the IPC without stripping the insulation. Loosen the shear nut slightly if needed to accommodate the conductor diameter.

Step 2: Preparing the Tap Cable

Select the tap cable (also known as branch conductor) as per the system design.
Insert the tap cable into the tap slot of the IPC.

Step 3: Tighten the Shear Nut to Secure the IPC

Use a Ratchet spanner or torque wrench to tighten the shear nut.
Tighten gradually and ensure even pressure distribution.
Continue tightening until the top small hex head of the shear nut breaks off, ensuring a secure connection.
Seal the open end of the cable with end caps. Ensure the cable end is fully sealed with the end caps.

You have successfully installed the IPC for Covered-to-Covered Conductor.

Installation of IPC for Earthing

Step 1: Preparing the Main Cable

Identify the main covered conductor for the IPC installation.
Align the conductor with the main slot of the IPC, ensuring it fits in the IPC without stripping the insulation. Loosen the shear nut slightly if needed to accommodate the conductor diameter.

Step 2: Tighten the Shear Nut to Secure the IPC

Use a ratchet spanner or torque wrench to tighten the shear nut.
Tighten gradually and ensure even pressure distribution.
Continue tightening until the top small hex head of the shear nut breaks off, ensuring a secure connection.

Congratulations, you have now installed the IPC for Earthing Connection.

Watch this video to understand the IPC installation in detail

Loading video

We hope you now have a clear idea about the installation procedure. If you have any doubts, reach out to us on our website axis-india.com. We have a team of 50+ engineers ready to help you design and install your next Covered Conductor Project.
