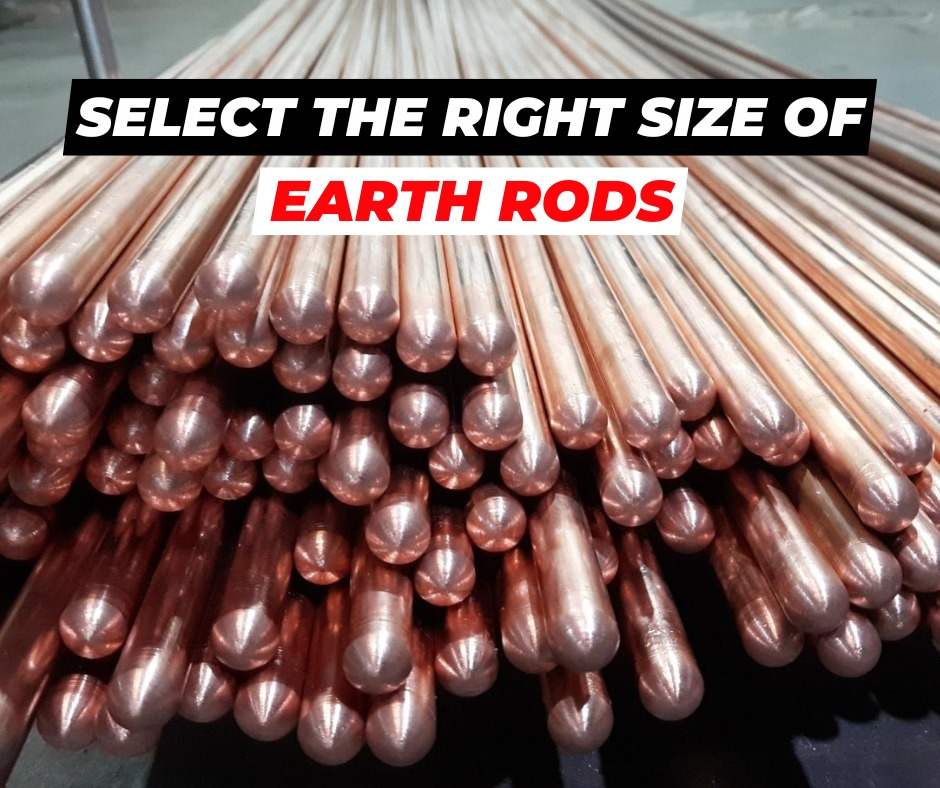

Earth Rod Dimensions & Selection Guide

In today’s video, we will discuss how to select your Earth Rod’s dimensions and some common misconceptions related to it. Wrong selection of these dimensions puts your electrical safety at risk.

What is an Earth Rod?

An earth rod is a type of earth electrode and is an essential part of any lightning protection and earthing system.
An earth electrode is a conducting element buried deep in the ground, which enables the flow of fault currents into the earth. These electrodes come in a variety of materials, shapes, and sizes including pipes, plates, rings, or earth rods.
There are different types of earth rods:

• Copper: Best conductivity
• Copper Bonded: Ideal for normal soil conditions
• Stainless Steel: Prevents galvanic corrosion
• Galvanised Steel: Most economical option

Standards & Design for Earth Rods

Choosing incorrect dimensions to save cost can compromise safety. Earth rod dimensions should always be selected based on application requirements.

• For earthing systems, dimensions depend on fault current and soil resistivity as per IEEE 80.
• For lightning protection systems, dimensions depend on cross-sectional area as per IEC 62305.

Cross-Sectional Area Requirements

The cross-sectional area determines how much lightning current a rod can safely carry.

• Copper (tin-plated): Minimum 15 mm
• Hot-dip Galvanised Steel: Minimum 14 mm
• Copper Coated Steel: Minimum 14 mm
• Stainless Steel: Minimum 15 mm

These values are based on material conductivity and thermal performance. If the rod is undersized, it can overheat and fail during a lightning strike.

Length of Earth Rod

The length of the earth rod determines its resistance to ground. Lower resistance ensures safe dissipation of lightning current.

Soil Conditions

• High Resistivity: Sandy or rocky soil (poor conductivity)
• Low Resistivity: Clay and moist soil (good conductivity)

Example: A 1-meter rod in moist soil performs better than the same rod in rocky soil.

Recommended Installation

• Minimum depth in soft soil: 3 meters
• Use longer rods or multiple rods in poor soil

Spacing Between Rods

Maintain spacing equal to rod length:

• 3-meter rod → 3-meter spacing

Dimensions of Earth Rod (Earthing Systems)

For earthing systems, the focus is on handling continuous fault current and ensuring safety, as per IEEE 80.

Rod Resistance Formula

R = (ρ / 2πL) × [ln(8L/d) − 1]
Where:
R = Resistance (ohms)
ρ = Soil resistivity (ohm-meters)
L = Rod length (meters)
d = Rod diameter (millimeters)

Example Calculation

Given soil resistivity = 100 ohm-meters:

• 3m rod (16mm diameter) → ~33 ohms
• 6m rod (16mm diameter) → ~19 ohms

You can reduce resistance by:

• Increasing rod length
• Using multiple rods in parallel
